9 Port Mini Smart Home Bluetooth Gateway Home Component Router Server

9 Port Mini Smart Home Bluetooth Gateway Home Component Router Server

Mini Bluetooth gateway smart home component router server realizes Bluetooth terminal and device interconnection

Product Description:

    It is a wireless Bluetooth gateway used in networking applications in smart home networks. It can effectively connect to WiFi networks and realize the linkage of Bluetooth terminal devices with the help of cloud servers;

Product Features:

• The networking mode supports static IP；
• Built-in network address translation (NAT function, support virtual server, special application and DMZ host;
• Built-in DHCP server, and static address assignment can be performed at the same time;
• Support Universal Plug and Play (UPNP), and data that meets the UPNP standard can be passed smoothly;
• Built-in firewall function, supporting domain name filtering and MAC address filtering;
• Support QoS bandwidth control function, which can effectively allocate the download rate of the client;
• Support dynamic DNS function, which can provide domain name service for dynamic IP address;
• Built-in static routing function, can build special network topology according to needs;
• Supports access control based on MAC address, which can effectively control the access rights of intranet users;
• Full English configuration interface, equipped with a simple installation wizard (Wizard).
• Support computer and mobile phone settings, and self-adaptive design of WEB page on mobile terminal;

Model	ZT-GWZW-01

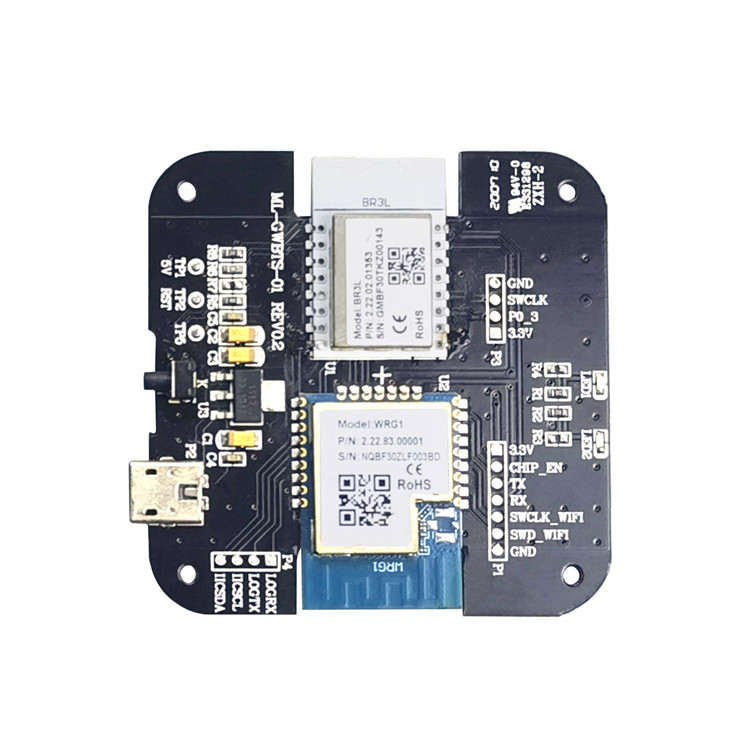

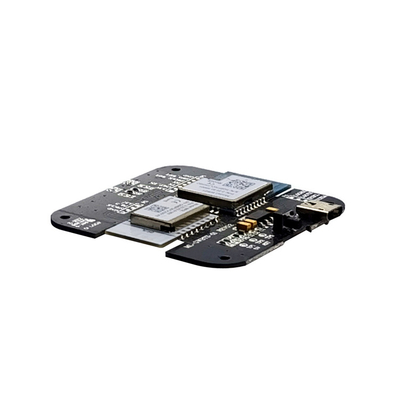

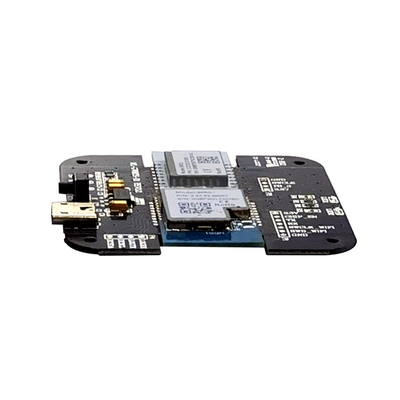

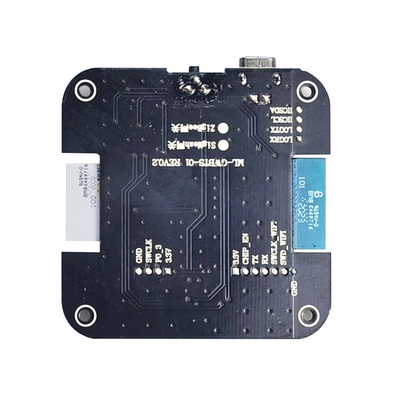

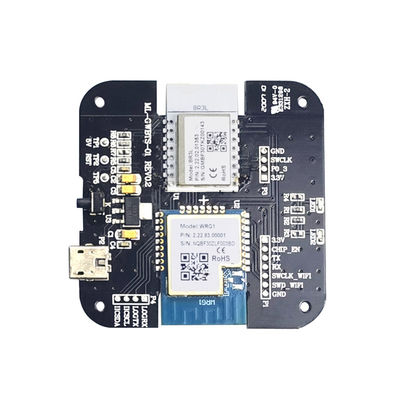

Appearance
Hardware specifications
Chipset	RTL8711AM
SPI Flash	1Mbyte
SDRam	2Mbyte
Key	1x Pair Key
LED	Power,All network ports have their own indicator lights;
Colour	Black
Dimensions                (L x W x H)	28*28*10；
Net weight	0.15kg
Gross weight	1.55kg
Electrical Specifications
Power input voltage	5V 0.5A
Maximum power consumption	＜3W
Power plug specifications	Choose according to the destination country
Business specifications
Networking method	static IP
Operating mode	Router mode,
WEB language	Englsh
Environmental specifications
Working temperature	0℃～40℃
Working environment humidity	10%～90% RH Non-condensing
Storage temperature	-10℃～70℃
Storage environment humidity	5%～90% RH Non-condensing
Certified product
3C certification	Passed, not certified；
CE certification	Passed, not certified；
FCC certification	Passed, not certified
RoHS certification	Passed, not certified；
Other certifications	No;
