300Mbps Dual Port 100m Smart Router MT7628 Chipset Desktop

300Mbps Dual Port 300m Smart Router MT7628 Chipset Desktop

Dual-port 100M Smart Wireless Router MT7628 Chipset Desktop 2.4G Router OEM Customization

Product Description:

    Based on the latest IEEE802.11n standard, ZT-RW800-B3U provides a stable transmission rate of up to 300Mbps and is backward compatible with IEEE802.11b/g. It integrates routers, wireless access points, switches, and firewalls. It provides a very convenient and comprehensive network management function, supports URL filtering and MAC address filtering and other functions, supports QoS bandwidth control function, can effectively allocate the download rate of the client; supports wireless data encryption, which can ensure the safety of data in wireless network transmission .

    ZT-RW800-B3U has good signal, high transmission rate and stable performance. It is the best choice for families to realize high-speed wireless Internet access.

    The desktop is placed vertically, beautiful and beautiful, simple to set up, and stable signal!

Product Features:

• Provide 1 10/100M Ethernet (WAN) interface, which can be connected to XDSL modem/Cable modem/Ethernet/GPON/EPON/XPON;
• Provide 1 10/100M Ethernet (LAN) interfaces for connection in the local area network;
• Support 2.4G wireless transmission rate up to 300Mbps, automatically adjust wireless transmission rate;
• The networking mode supports static IP, dynamic IP, PPPOE dialing
• Support WPA/WPA2, WPA-PSK/WPA2-PSK and other encryption and security mechanisms;
• Adopt Roaming technology to ensure efficient wireless connection;
• Built-in network address translation (NAT function, support virtual server, special application and DMZ host;
• Built-in DHCP server, and static address assignment can be performed at the same time;
• Support Universal Plug and Play (UPNP), and data that meets the UPNP standard can be passed smoothly;
• Built-in firewall function, supporting domain name filtering and MAC address filtering;
• Support QoS bandwidth control function, which can effectively allocate the download rate of the client;
• Support dynamic DNS function, which can provide domain name service for dynamic IP address;
• Built-in static routing function, can build special network topology according to needs;
• Supports access control based on MAC address, which can effectively control the access rights of intranet users;
• Full English configuration interface, equipped with a simple installation wizard (Wizard).
• Support computer and mobile phone settings, and self-adaptive design of WEB page on mobile terminal;

Model	ZT-RW800-B3U

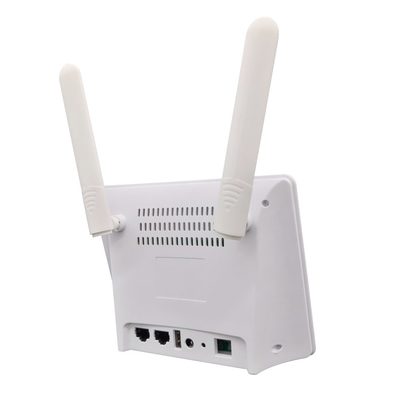

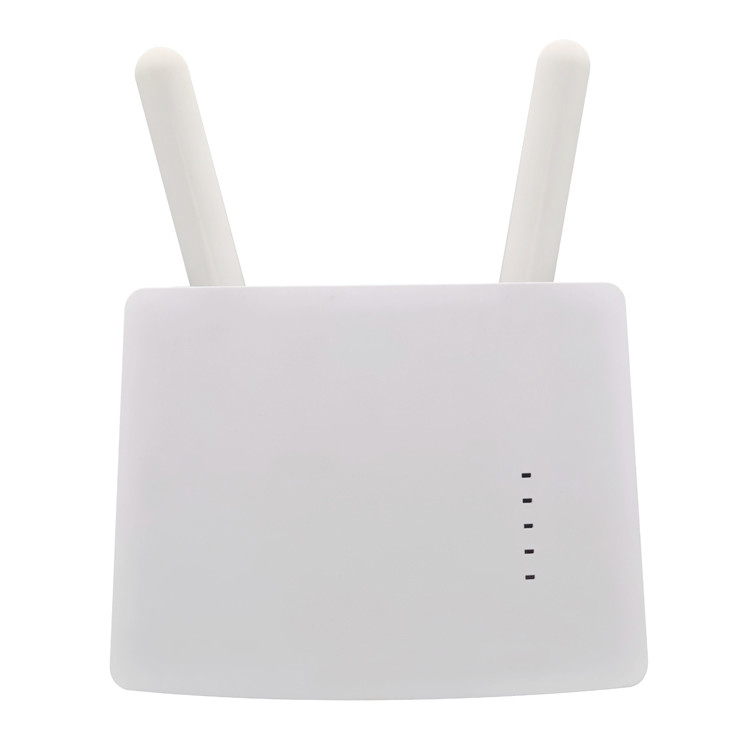

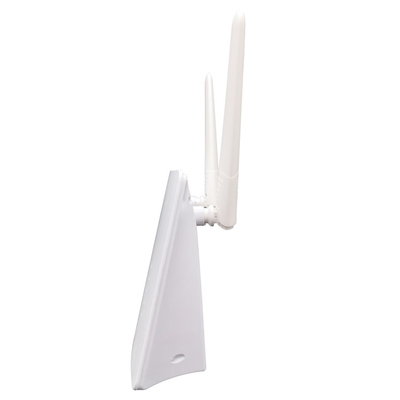

Appearance
Hardware specifications
Chipset	MT7628NN/MT7628DAN
SPI Flash	8Mbyte
SDRam	64Mbyte
Ports	WAN: 1 x 10/100 RJ45 Ports(Auto MDI/MDIX)
	LAN: 1 x 10/100 RJ45 Ports(Auto MDI/MDIX)
	Reset: 1x RESET Key
	WPS: 1 x WPS Key
	USB:1 x USB2.0；
Antenna	2 external 3dBi non-detachable antennas
PA	2.4G: No；
LED	Power,Internet,2.4G,WAN,LAN;
Colour	White
Dimensions                (L x W x H)	180*210*35
Net weight	0.65kg
Gross weight	0.75kg
Electrical Specifications
Power input voltage	5V 1A
Maximum power consumption	＜5W
Power plug specifications	Choose according to the destination country
Wireless RF power	11b:19dbm(max) 11g:16dbm(max) 11n:15dbm(max)
Receiving sensitivity	11N_MCS7_20M: -70dBm@10% PER 11N_MCS7_40M: -65dBm@10% PER 54M: -70dBm@10% PER 11M: -85dBm@8% PER
working frequency	2.4 ~ 2.4835GHz
Business specifications
Networking method	PPPOE dial-up, static IP, dynamic IP
Operating mode	Router mode, access point mode, repeater bridge mode, repeater mode
Port transmission rate	10/100M
Wireless transmission rate	11n: Up to 300Mbps 11g: 54/48/36/24/18/12/9/6M 11b: 11/5.5/2/1M
Network protocol:	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u;
WEB language	Englsh
Environmental specifications
Working temperature	0℃～40℃
Working environment humidity	10%～90% RH Non-condensing
Storage temperature	-10℃～70℃
Storage environment humidity	5%～90% RH Non-condensing
Certified product
3C certification	Passed, not certified；
CE certification	Passed, not certified；
FCC certification	Passed, not certified
RoHS certification	Passed, not certified；
Other certifications	No;
