100M 8 Port Unmanaged POE Switch Rack Mounted Built In Power Supply

100M 8 Port Unmanaged POE Switch Rack Mounted Built In Power Supply

8-port 100M unmanaged rack-mounted PoE network switch with 11-inch iron housing built-in power supply

Product Description:
    ZT-S1008PED is a non-network managed PoE Ethernet switch product independently developed by our company. It provides 8 10/100M adaptive RJ45 ports, each port supports MDI/MDIX automatic flip function, and can realize wire-speed forwarding. The 16 ports have PoE function, support the IEEE802.3at standard, and are backward compatible with 802.3af. It can be used as a power supply device for Ethernet. It can automatically detect and identify the power receiving device that meets the IEEE 802.3af standard, and supply power to it through a network cable.
    ZT-S1008PED is simple and convenient to use, no need to configure, plug and play, and can flexibly expand home and office networks without being restricted by power line layout.

Product Features:

• Comply with IEEE 802.3-2000 standard;
• Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3x standards;
• Support IEEE802.3af, 802.3at standards;
• Flow control method: Full duplex adopts IEEE 802.3x standard, half duplex adopts Backpressure standard;
• Store-and-forward architecture;
• The power consumption of a single port can be as large as 30W, and the total power consumption can reach up to 150W;
• 8 10/100M self-adaptive RJ45 ports, support automatic port flipping (Auto MDI/MDIX);16 ports support PoE power supply;
• UTP port supports auto-negotiation function, automatically adjusts the transmission method and transmission rate;
• 8K MAC address table, MAC address learning;
• Dynamic LED indicator, indicating network working status prompts and troubleshooting;
• Built-in power supply, iron shell structure design, suitable for desktop and rack use.
• 11-inch standard rack-mounted hardware enclosure, suitable for cabinet installation;

Model	ZT-S1008PED

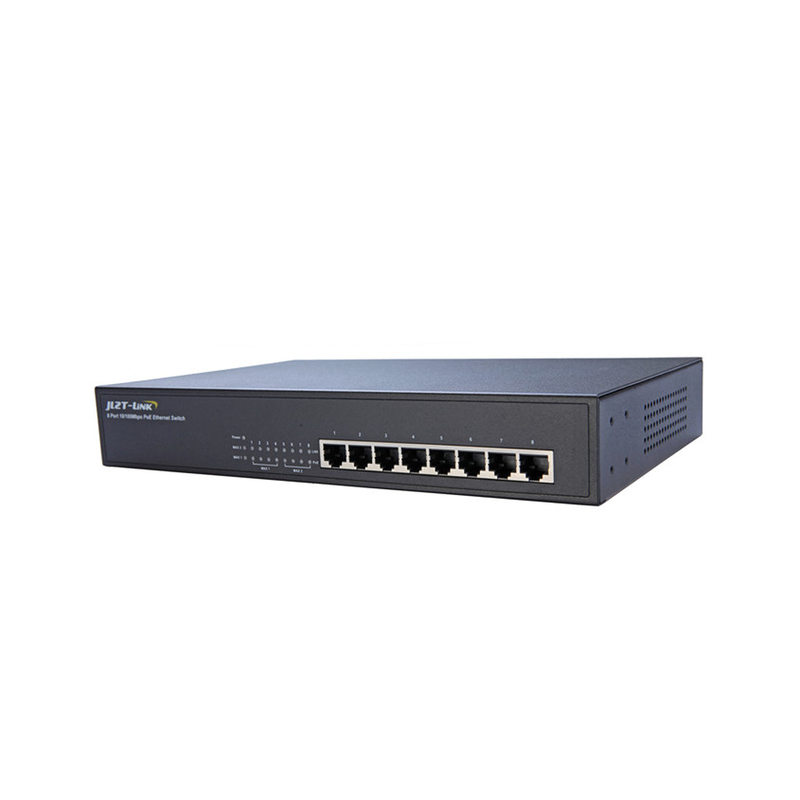

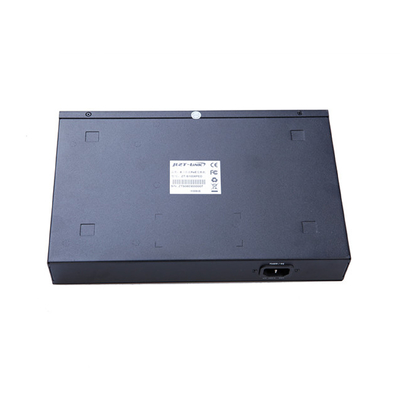

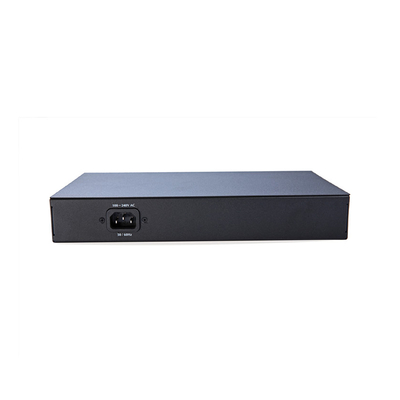

Appearance
Hardware specifications
Chipset	RTL8309N
Ports	8 10/100M adaptive RJ45 ports (Auto MDI/MDIX)
Supported standards and protocols	IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3af,IEEE802.3at；
LED	Power,Link/Act/Speed
Protocol	CSMA/CD
MAC address capacity	8K
Network medium	10Base-T: Category 3 or above UTP 100Base-TX: Category 5 or above UTP
Forwarding rate	10Mbps: 14880pps 100Mbps: 148800pps
Backplane bandwidth	1.6Gbps
Colour	Black
Dimensions                (L x W x H)	280*179*44.5mm
Net weight	2.15kg
Gross weight	2.45kg
Electrical Specifications
Power input voltage	52V 3A
Maximum power consumption	＜150W
Power plug specifications	Choose according to the destination country
Environmental specifications
Working temperature	0℃～40℃
Working environment humidity	10%～90% RH Non-condensing
Storage temperature	-10℃～70℃
Storage environment humidity	5%～90% RH Non-condensing
Certified product
3C certification	Passed, not certified；
CE certification	Passed, not certified；
FCC certification	Passed, not certified
RoHS certification	Passed, not certified；
Other certifications	No;
