5-port 100M unmanaged POE switch iron shell external power supply 802.11af

Product Description:

    Provide 5 10/100Nway adaptive RJ45 ports, each port supports MDI/MDIX automatic flip function, and can realize wire-speed forwarding. Ports 2-5 have PoE function, support IEEE802.3at standard, backward compatibility, support IEEE802.3af, can be used as a power-over-Ethernet device, can automatically detect and identify power-receiving devices that comply with IEEE 802.3at and IEEE802.3af standards, and use a network cable as Its power supply.

    ZT-SW1005PED is simple and convenient to use, without configuration, plug and play, and can flexibly expand home and office networks without the limitation of power line layout; it is an ideal choice for small and medium Ethernet.

Product Features:

• 5 10/100M adaptive RJ45 ports, 2~5 ports support PoE power supply;
• Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3AZ standards;
• Support IEEE802.3at, compatible with IEEE802.3af standard；
• Single port power consumption can support up to 30W, and the total power consumption can reach up to 70W;
• Flow control method: Full-duplex adopts IEEE 802.3x standard, half-duplex adopts Backpressure standard;
• Store-and-forward architecture;
• UTP port supports auto-negotiation function, automatically adjusts the transmission mode and transmission rate;
• Support MAC address self-learning;
• Dynamic LED indicators provide simple working status prompts and troubleshooting;
• External power supply, exquisite iron shell structure design;

Model	ZT-SW1005PED

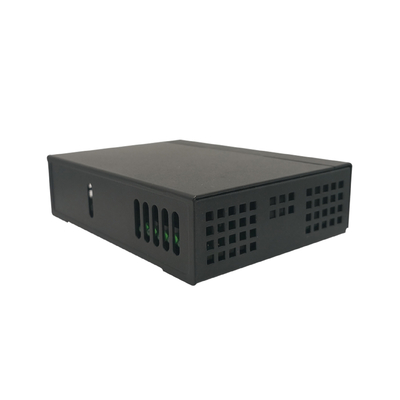

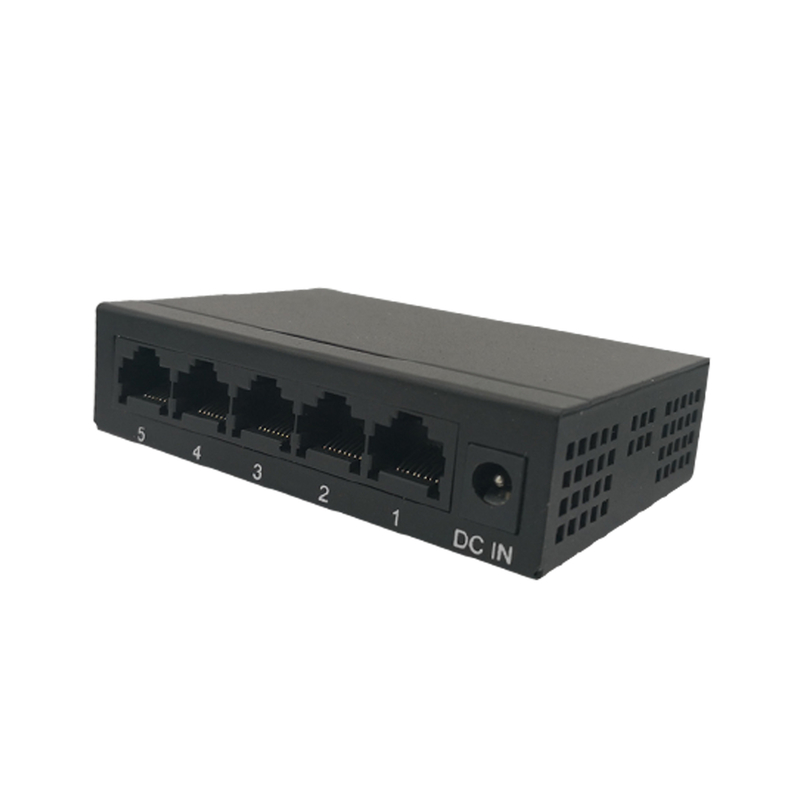

Appearance
Hardware specifications
Chipset	IP175G+IP804AR
Ports	5 x 10/100 RJ45 Ports(Auto MDI/MDIX)
Network medium	10BASE-T: Category 3, 4, 5 unshielded twisted pair (≤100m)                    100BASE-TX: Category 5 and above unshielded twisted pair (≤100m)
Forwarding rate	10Mbps:14880pps 100Mbps:148800pps
LED	Power, Link/Act, PoE Status
Colour	Black
Dimensions                (L x W x H)	80*90*21mm
Net weight	0.65kg
Gross weight	0.75kg
Electrical Specifications
Power input voltage	52V 1.25A
Maximum power consumption	＜65W
Power plug specifications	Choose according to the destination country
Business specifications
MAC address capacity	1K
Port transmission rate	10/100M
Protocol	CSMA/CD
Network protocol:	IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3at,IEEE802.3az
WEB language	Englsh
Environmental specifications
Working temperature	0℃～40℃
Working environment humidity	10%～90% RH Non-condensing
Storage temperature	-10℃～70℃
Storage environment humidity	5%～90% RH Non-condensing
Certified product
3C certification	Passed, not certified；
CE certification	Passed, not certified；
FCC certification	Passed, not certified
RoHS certification	Passed, not certified；
Other certifications	No
