4.8Gbps 24 Port Rack Mounted Network Switch RTL8324D Chipset

4.8Gbps 24 Port Rack Mounted Network Switch RTL8324D Chipset

24 port 100M unmanaged Ethernet switch rack-mounted network switch 11 inch iron shell port 100M

Product Description:

    ZT-S1024D 10/100Mbps Ethernet switch is an ideal way to integrate 10Mbps Ethernet and 100Mbps Fast Ethernet equipment. All 24 ports can negotiate speed automatically, and have automatic MDI/MDI-X adaptive cross detection function, so you don't have to worry about the type of cable. Each port can independently negotiate to determine the best speed and half-duplex or full-duplex mode, and can provide up to 200Mbps bandwidth for each port. Fast store-and-forward switching can prevent corrupted data packets from continuing to be transmitted on the network. Using green Ethernet technology (802.3az), it can automatically adjust signal strength by detecting cable length and workload, effectively reducing energy consumption and protecting the environment without reducing equipment operating performance and efficiency.

Product Features:

• Comply with IEEE 802.3-2000 standard;
• Conform to IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3at and other Ethernet standards;
• Flow control method: Full duplex adopts IEEE 802.3x standard, half duplex adopts Backpressure standard;
• Store-and-forward architecture;
• 10 10/100M self-adaptive RJ45 ports, support automatic port flipping (Auto MDI/MDIX);
• UTP port supports auto-negotiation function, automatically adjusts the transmission method and transmission rate;
• 8K MAC address table, MAC address learning;
• Dynamic LED indicator, indicating network working status prompts and troubleshooting;
• Built-in power supply, iron shell structure design, suitable for desktop and rack use.
• Desktop or 11-inch rack installation.

Model	ZT-S1024D

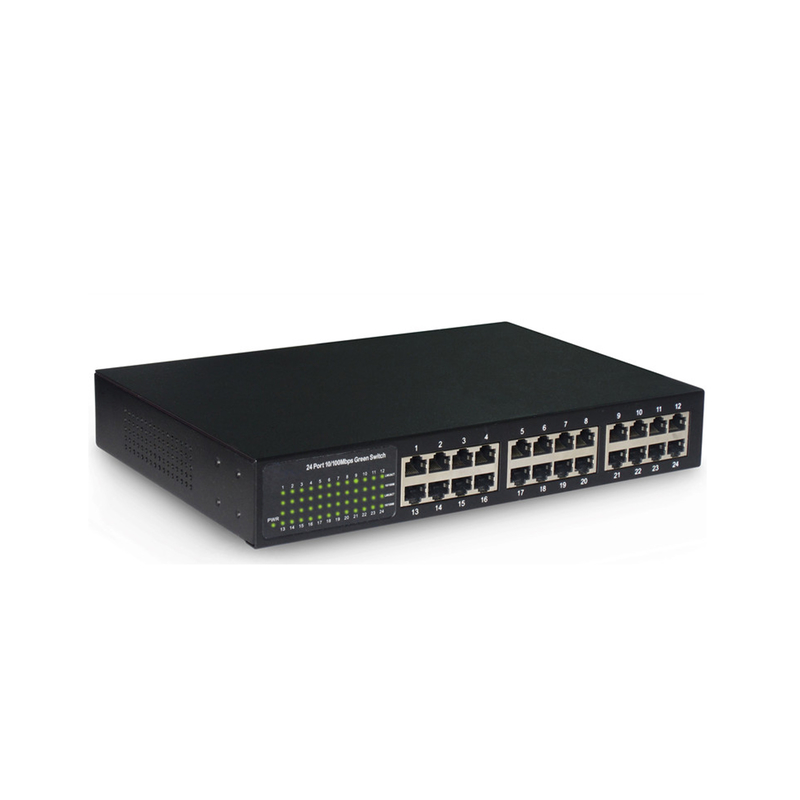

Appearance
Hardware specifications
Chipset	RTL8324D
Ports	24 10/100M adaptive RJ45 ports (Auto MDI/MDIX)
Supported standards and protocols	IEEE 802.3,IEEE 802.3u,IEEE802.3ab,IEEE802.3x, IEEE802.3az
LED	Power,Link/Act/Speed
Protocol	CSMA/CD
MAC address capacity	8K
Network medium	10Base-T: Category 3 or above UTP 100Base-TX: Category 5 or above UTP
Forwarding rate	10Mbps: 14880pps 100Mbps: 148800pps
Backplane bandwidth	4.8Gbps
Colour	Black
Dimensions                (L x W x H)	280x180x44.3mm
Net weight	2.35kg
Gross weight	2.75kg
Electrical Specifications
Power input voltage	12V 0.5A
Maximum power consumption	＜6W
Power plug specifications	Choose according to the destination country
Environmental specifications
Working temperature	0℃～40℃
Working environment humidity	10%～90% RH Non-condensing
Storage temperature	-10℃～70℃
Storage environment humidity	5%～90% RH Non-condensing
Certified product
3C certification	Passed, not certified；
CE certification	Passed, not certified；
FCC certification	Passed, not certified
RoHS certification	Passed, not certified；
Other certifications	No;
