OEM Rack Mounted Network Switch 10 Port Iron Shell Gigabit Switch

OEM Rack Mounted Network Switch 10 Port Iron Shell Gigabit Switch

8+2SFP unmanaged Ethernet Gigabit switch 10-port iron shell Gigabit switch OEM custom

Product Description:

    ZT-S1010GF is a 10-port 10/100/1000M high-speed Ethernet switch. It provides you with desktop-level high-performance Ethernet features. This product provides 8 10/100Mbps adaptive ports, highly integrated design, small, light, simple operation, suitable for small and medium office and home networks. Using store-and-forward technology, combined with dynamic memory allocation, to ensure effective allocation to each port. Flow control ensures that the node avoids data packet loss as much as possible when transmitting and receiving. The LED panel light dynamically displays the power supply and network connection status.

Product Features:

• Comply with IEEE 802.3-2000 standard;
• Conform to IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3at and other Ethernet standards;
• Flow control method: Full duplex adopts IEEE 802.3x standard, half duplex adopts Backpressure standard;
• Store-and-forward architecture;
• 10 10/100M/1000M self-adaptive RJ45 ports, support automatic port flipping (Auto MDI/MDIX);
• UTP port supports auto-negotiation function, automatically adjusts the transmission method and transmission rate;
• 8K MAC address table, MAC address learning;
• Dynamic LED indicator, indicating network working status prompts and troubleshooting;
• Built-in power supply, iron shell structure design, suitable for desktop and rack use.

Model	ZT-S1010GF

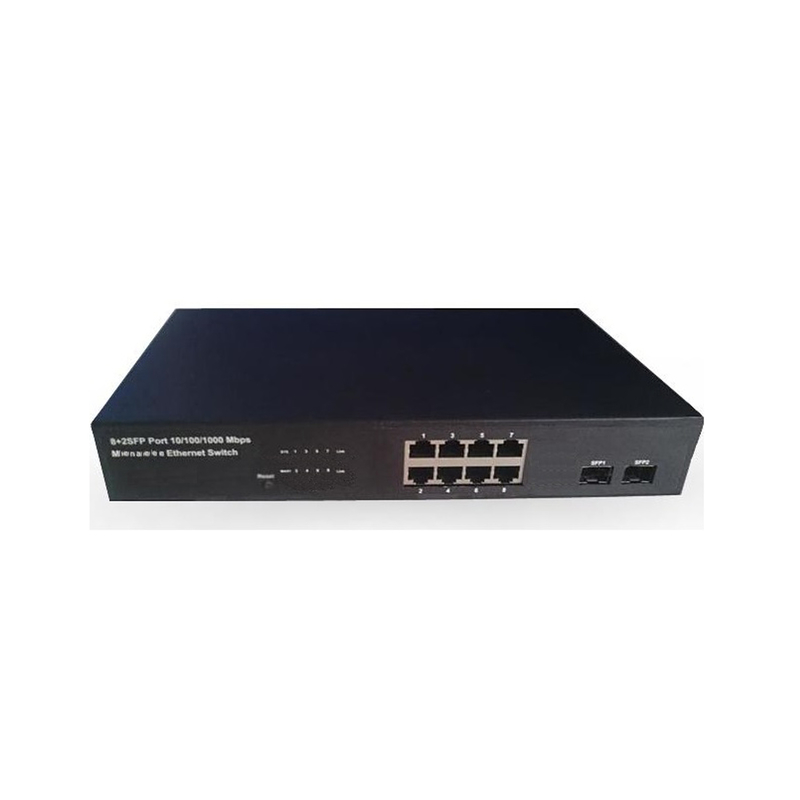

Appearance
Hardware specifications
Chipset	RTL8380M+RTL8231
Ports	8 10/100M adaptive RJ45 ports (Auto MDI/MDIX) 2 10/100/1000M SFP port network access
Supported standards and protocols	IEEE 802.3,IEEE 802.3u,IEEE 802.3x,802.1q
LED	Power,Link/Act/Speed
Protocol	CSMA/CD
MAC address capacity	8K
Network medium	10Base-T: Category 3 or above UTP 100Base-TX: Category 5 or above UTP 1000Base-T: Super Category 5 UTP
Forwarding rate	10Mbps: 14880pps 100Mbps: 148800pps 1000Mbps: 1488000pps
Backplane bandwidth	20Gbps
Colour	Black
Dimensions                (L x W x H)	280*180*44mm
Net weight	2.35kg
Gross weight	2.75kg
Electrical Specifications
Power input voltage	12V 1A
Maximum power consumption	＜12W
Power plug specifications	Choose according to the destination country
Environmental specifications
Working temperature	0℃～40℃
Working environment humidity	10%～90% RH Non-condensing
Storage temperature	-10℃～70℃
Storage environment humidity	5%～90% RH Non-condensing
Certified product
3C certification	Passed, not certified；
CE certification	Passed, not certified；
FCC certification	Passed, not certified
RoHS certification	Passed, not certified；
Other certifications	No;
