10 Gigabit Rack Mounted Network Switch 48 Port SFP Aggregation Switches

10 Gigabit Rack Mounted Network Switch 48 Port SFP Aggregation Switches

48-port 10 Gigabit managed network data switch rack-mounted switch 4 10G SFP aggregation switches

Product Description:

    The ZT-ST1048G-4X product is a high-density switching product with Gigabit access + 10 Gigabit uplink. It supports fixed 24/48 Gigabit electrical ports, and 2/4 10 Gigabit SFP+ uplinks can be flexibly selected according to the different needs of users. It can meet the networking requirements of large-scale network access or the convergence of small and medium-sized networks, especially the large-scale concurrent data throughput environment of the new generation of Internet cafes.

Product Features:

• 48*10/100/1000Base-T Ethernet port
• 4*10GBase-X SFP+ independent port
• With full wire-speed 10G/Gigabit switching and forwarding capabilities, the maximum switching capacity can reach 176 Gbps, and the maximum packet forwarding rate can reach 130.924Mpps. It can be used in a variety of network environments and is ideal for building an intelligent 10G/Gigabit backbone network choose.
• The port mirroring function can copy the traffic of one port to another designated port. This mechanism can help network managers track errors and abnormal data packets that occur on the network without interrupting the network, which is convenient for the security of the entire network. Surveillance is currently widely used in public security surveillance systems in the Internet cafe industry.
• The carrier-grade loop protection protocol EAPS guarantees seamless switching in milliseconds when the Internet cafe equipment or link fails, ensuring the normal operation of the network. 10 Gigabit EAPS ring network, to ensure the reasonable and efficient application of network lines and switches; Provide equipment-level redundancy technology, that is, single-point backbone line failure will not have any impact on the network; Topology automatic recovery technology, after backbone failure recovery , Will quickly restore the network topology to the design time, and control the network at any time.
• Rate/duplex mode adaptive
• IEEE 802.3x flow control
• Super long frame setting, 8192Bytes
• Support port static aggregation, 32 aggregation groups, 8 ports in each aggregation group
• Support port dynamic aggregation, 32 aggregation groups, each aggregation group
• Support many-to-one port mirroring function
• The 19-inch standard rack-mounted chassis structure can be installed and debugged in any standard cabinet;


Model	ZT-ST1048G-4X

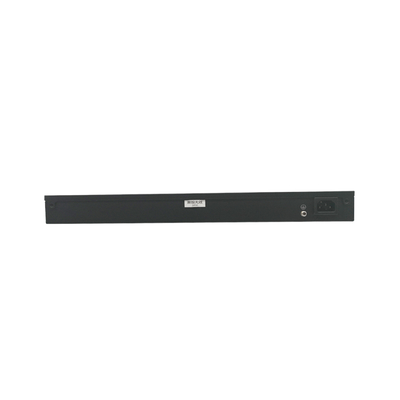

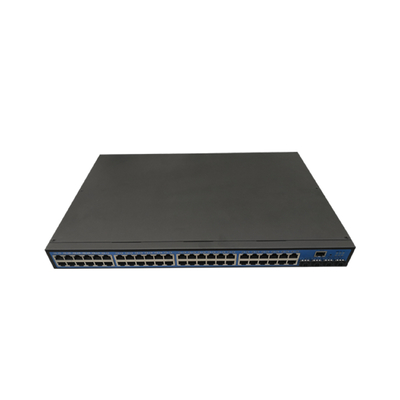

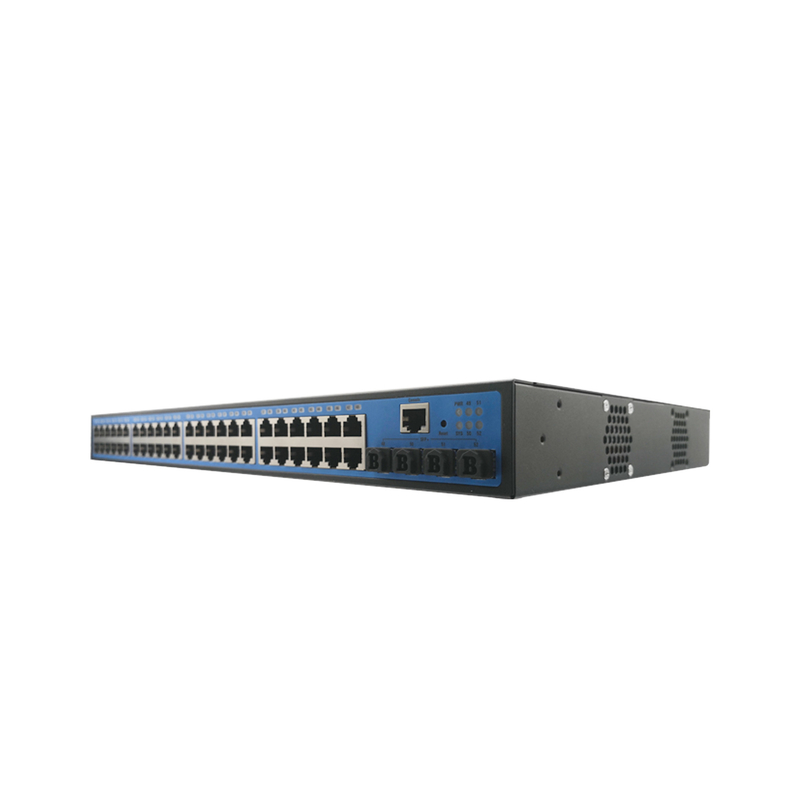

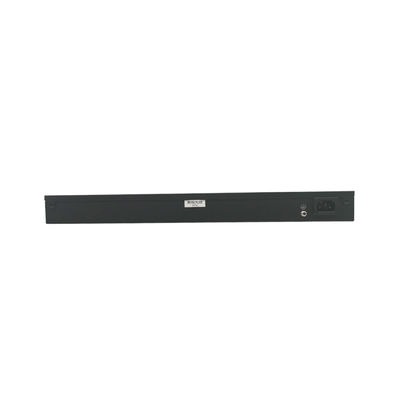

Appearance
Hardware specifications
Chipset	BCM53346A0KFSBG+B50282C1KFBG
Ports	48*10/100/1000Base-T Ethernet port
	4*10GBase-X SFP+ independent port
	RS232: 1* RS232
Forwarding performance	130.924Mpps
Backplane bandwidth	176 Gbps
LED	Power,System
Colour	Black
Dimensions                (L x W x H)	440mm×270mm×44mm
Net weight	7.75kg
Gross weight	8.85kg
Electrical Specifications
Power input voltage	90VAC-264VAC,47-63Hz
Maximum power consumption	＜60W
Power plug specifications	Choose according to the destination country
Port forwarding	All ports support wire-speed forwarding (the smallest particle is 64Kbps)
MAC table entry	16K
Standards and agreements	IEEE 802.3,IEEE 802.3u,IEEE802.3ad,IEEE 802.3x,IEEE802.1Q,IEEE802.1p
VLAN	Number of VLANs: 4K Support port-based VLAN Support subnet VLAN Support MAC_BASED VLAN Support Protocol VLAN
MSTP	Support port path cost setting, 1-200000000 Support port priority setting, 0-240, and must be a multiple of 16 Support port fast forwarding Support port bpdu filtering and bpdu protection Support port link type: shared, point-to-point Support port root protection Support port protocol version setting: stp, rstp, mstp Support the maximum number of hops setting Support hello delay setting
EAPS	Support 16 rings Support hello-time setting Support fail-time setting
Safety features	Support port isolation Support broadcast storm control
Port characteristics	Rate/duplex mode adaptive IEEE 802.3x flow control Super long frame setting, 8192Bytes Support port static aggregation, 32 aggregation groups, 8 ports in each aggregation group Support port dynamic aggregation, 32 aggregation groups, each aggregation group Support many-to-one port mirroring function
WEB language	Englsh
Environmental specifications
Working temperature	0℃～40℃
Working environment humidity	10%～90% RH Non-condensing
Storage temperature	-10℃～70℃
Storage environment humidity	5%～90% RH Non-condensing
Certified product
3C certification	Passed, not certified；
CE certification	Passed, not certified；
FCC certification	Passed, not certified
RoHS certification	Passed, not certified；
Other certifications	No;
