Non-standard custom Snapdragon ARM node application processing CPU unit VPN router cloud server unit node

Product Description:

    ACPU-01 is a high-performance ARM application processing card single board, used with the ZT-P1324 platform to realize a high-performance ARM application platform solution. It has the characteristics of high performance, high integration, low power consumption, and scalability. It is suitable for multi-channel parallel data calculation, data analysis, application service and image processing application based on ARM architecture.

Product Features:

• 4-core Cortex-A75 CPU node clocked at 2.8GHz;
• 4-core Cortex-A55 CPU node clocked at 1.8GHz;
• Built-in network address translation (NAT function, support virtual server, special application and DMZ host;
• Built-in DHCP server, and static address assignment can be performed at the same time;
• Support Universal Plug and Play (UPNP), and data that meets the UPNP standard can be passed smoothly;
• Built-in firewall function, supporting domain name filtering and MAC address filtering;
• 710MHz GPU;
• Support dynamic DNS function, which can provide domain name service for dynamic IP address;
• Built-in static routing function, can build special network topology according to needs;
• Supports access control based on MAC address, which can effectively control the access rights of intranet users;
• Single board power consumption <10 watts;

Model	ZT-ACPU-01

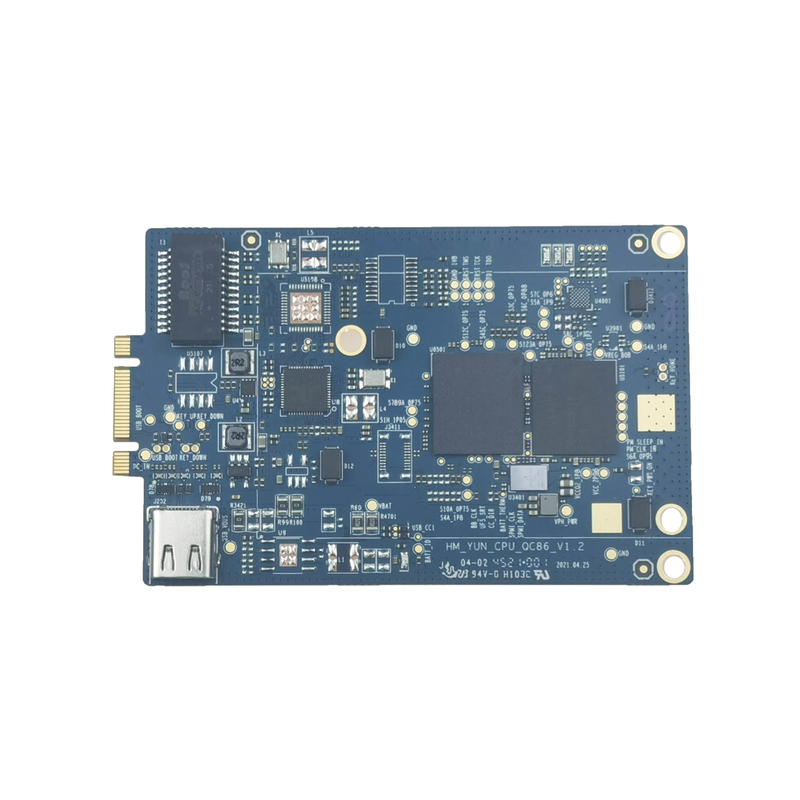

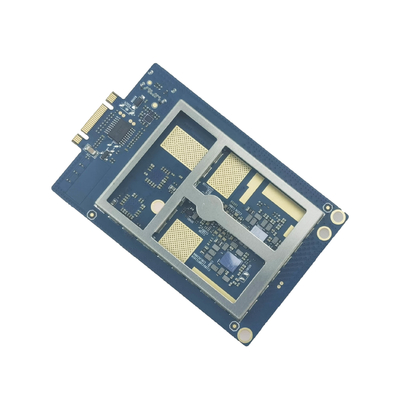

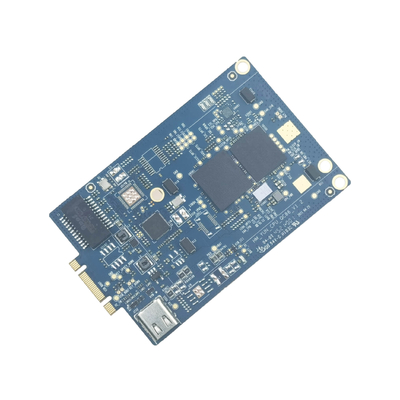

Appearance
Hardware specifications
Chipset
SPI Flash	64Gbyte
SDRam	16GMbyte
Ports	Mini-PCIE (integrated 1×10/100/1000M data channel)
	1×UART, 1×HDMI (optional), 1×Type C (required), 1*3Pin serial port/CN1 (optional)
LED	Power
Colour	Black
Dimensions                (L x W x H)	50*80*20
Net weight	0.25kg
Gross weight	0.35kg
Electrical Specifications
Power input voltage	12V 1A
Maximum power consumption	＜12W
Power plug specifications	Choose according to the destination country
Business specifications
Networking method	static IP, dynamic IP
Port transmission rate	10/100/1000M/2.5G
WEB language	Englsh
Environmental specifications
Working temperature	0℃～40℃
Working environment humidity	10%～90% RH Non-condensing
Storage temperature	-10℃～70℃
Storage environment humidity	5%～90% RH Non-condensing
Certified product
3C certification	Passed, not certified；
CE certification	Passed, not certified；
FCC certification	Passed, not certified
RoHS certification	Passed, not certified；
Other certifications	No;
