100M VPN Router Server POE Wired Router Gateway Control Module

100M VPN Router Server POE Wired Router Gateway Control Module

100M POE wired router gateway control module AC controller core gateway module non-standard custom

Product Description:

    provides a very convenient and comprehensive network management function, supports URL filtering and MAC address filtering and other functions, supports QoS bandwidth control function, can effectively allocate the download rate of the client; supports wireless data encryption, which can ensure the safety of data in wireless network transmission .

    ZT-ME400P has good signal, high transmission rate and stable performance. It is the best choice for families to realize high-speed wireless Internet access.

Product Features:

• Provide 1 10/100M Ethernet (WAN) interface, which can be connected to XDSL modem/Cable modem/Ethernet/GPON/EPON/XPON;
• Provide 4 10/100M Ethernet (LAN) interfaces for connection in the local area network;
• The LAN port supports standard POE power supply, which can provide POE power and network data to lower-level terminal equipment;
• The networking mode supports static IP, dynamic IP, PPPOE dialing
• Adopt Roaming technology to ensure efficient wireless connection;
• Built-in network address translation (NAT function, support virtual server, special application and DMZ host;
• Built-in DHCP server, and static address assignment can be performed at the same time;
• Support Universal Plug and Play (UPNP), and data that meets the UPNP standard can be passed smoothly;
• Built-in firewall function, supporting domain name filtering and MAC address filtering;
• Support QoS bandwidth control function, which can effectively allocate the download rate of the client;
• Support dynamic DNS function, which can provide domain name service for dynamic IP address;
• Built-in static routing function, can build special network topology according to needs;
• Supports access control based on MAC address, which can effectively control the access rights of intranet users;
• Full English configuration interface, equipped with a simple installation wizard (Wizard).
• Support computer and mobile phone settings, and self-adaptive design of WEB page on mobile terminal;

Model	ZT-ME400P

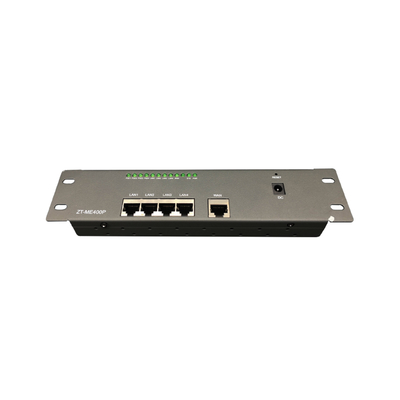

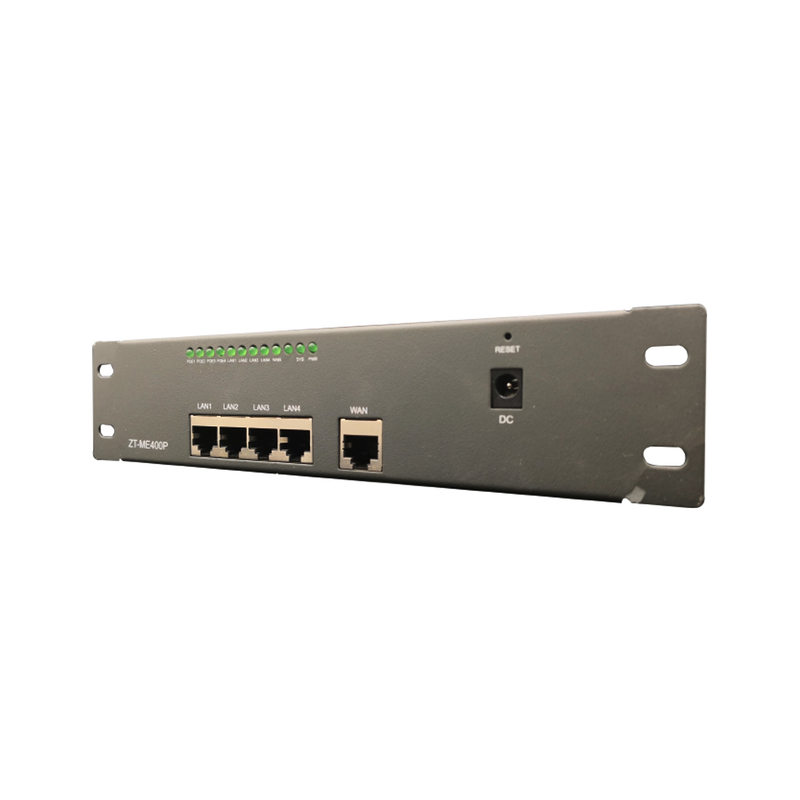

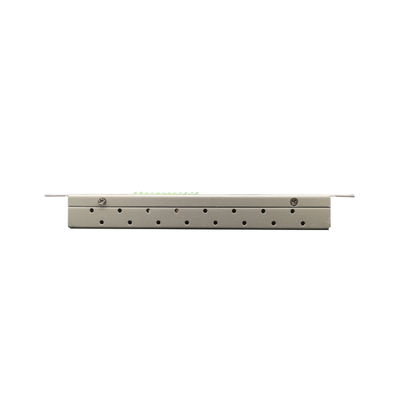

Appearance
Hardware specifications
Chipset	MT7628NN
SPI Flash	32Mbyte
SDRam	128Mbyte
Ports	WAN: 1 x 10/100 RJ45 Ports(Auto MDI/MDIX)
	LAN: 4 x 10/100 RJ45 Ports(Auto MDI/MDIX)
	Reset: 1x RESET Key
LED	Power,Internet,WAN,LAN1,LAN2,LAN3,LAN4
Colour	Black
Dimensions                (L x W x H)	140*75*20
Net weight	0.95kg
Gross weight	1.05kg
Electrical Specifications
Power input voltage	52V 1.25A
Maximum power consumption	＜65W
Power plug specifications	Choose according to the destination country
Business specifications
Networking method	PPPOE dial-up, static IP, dynamic IP
Operating mode	Router mode
Port transmission rate	10/100M
Network protocol:	IEEE 802.3, IEEE 802.3u
WEB language	Englsh
Environmental specifications
Working temperature	0℃～40℃
Working environment humidity	10%～90% RH Non-condensing
Storage temperature	-10℃～70℃
Storage environment humidity	5%～90% RH Non-condensing
Certified product
3C certification	Passed, not certified；
CE certification	Passed, not certified；
FCC certification	Passed, not certified
RoHS certification	Passed, not certified；
Other certifications	No;
