ODM 1000Mbps AC Wireless Gateway AP Manager Core Management Gateway Router

ODM 100Mbps AC Wireless Gateway AP Manager Core Management Gateway Router

5-port gigabit standard Ac wireless gateway wireless controller AP manager core management gateway router

Product Description:

    Based on the latest 802.11k/v/r and AC architecture management standards, ZT-AC550G integrates routers, switches and firewalls. Provides very convenient and comprehensive network management functions, supports URL filtering and MAC address filtering and other functions, supports QoS bandwidth control functions, can effectively allocate client download rates; supports VPN penetration and behavior management to ensure data security during wireless network transmission .

    ZT-AC550G has good signal, high transmission rate and stable performance. It is the best choice for families to realize high-speed wireless Internet access.

Product Features:

• Provide 1 10/100/1000M Ethernet (WAN) interface, which can be connected to XDSL modem/Cable modem/Ethernet/GPON/EPON/XPON;
• Provide 4 10/100/1000M Ethernet (LAN) interfaces for connection in the local area network;
• The networking mode supports static IP, dynamic IP, PPPOE dialing
• Adopt Roaming technology to ensure efficient wireless connection;
• Built-in network address translation (NAT function, support virtual server, special application and DMZ host;
• Built-in DHCP server, and static address assignment can be performed at the same time;
• Support Universal Plug and Play (UPNP), and data that meets the UPNP standard can be passed smoothly;
• Built-in firewall function, supporting domain name filtering and MAC address filtering;
• Support QoS bandwidth control function, which can effectively allocate the download rate of the client;
• Support dynamic DNS function, which can provide domain name service for dynamic IP address;
• Built-in static routing function, can build special network topology according to needs;
• Supports access control based on MAC address, which can effectively control the access rights of intranet users;
• Full English configuration interface, equipped with a simple installation wizard (Wizard).
• Support computer and mobile phone settings, and self-adaptive design of WEB page on mobile terminal;

Model	ZT-AC550G

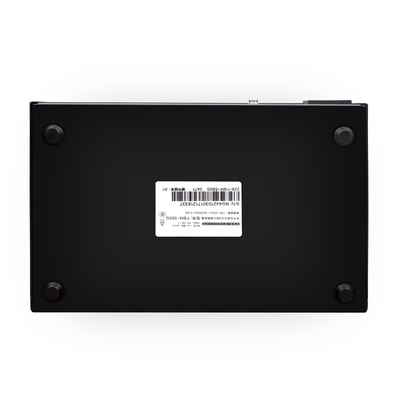

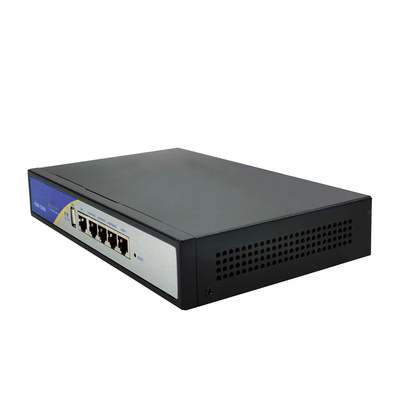

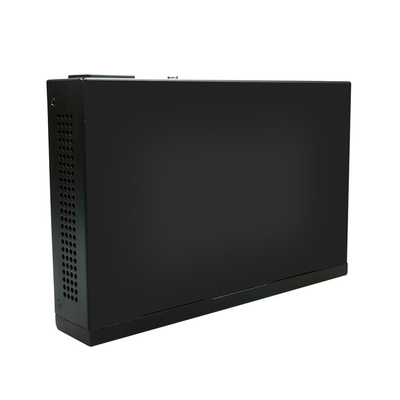

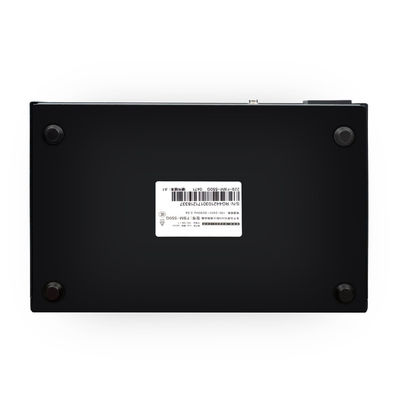

Appearance
Hardware specifications
Chipset	MT7621AT
SPI Flash	16Mbyte
SDRam	128Mbyte
Ports	WAN: 1 x 10/100/1000 RJ45 Ports(Auto MDI/MDIX)
	LAN: 4 x 10/100/1000 RJ45 Ports(Auto MDI/MDIX)
	Reset: 1x RESET Key
	USB:1 x USB2.0；
LED	Power,Internet,WAN,LAN1,LAN2,LAN3,LAN4
Colour	Black
Dimensions                (L x W x H)	200*140*44.45；Standard 1U height chassis;
Net weight	1.35kg
Gross weight	1.55kg
Electrical Specifications
Power input voltage	12V 1A
Maximum power consumption	＜12W
Power plug specifications	Choose according to the destination country
Business specifications
Networking method	PPPOE dial-up, static IP, dynamic IP
Operating mode	Router mode,
Port transmission rate	10/100/1000M
WEB language	Englsh
Environmental specifications
Working temperature	0℃～40℃
Working environment humidity	10%～90% RH Non-condensing
Storage temperature	-10℃～70℃
Storage environment humidity	5%～90% RH Non-condensing
Certified product
3C certification	Passed, not certified；
CE certification	Passed, not certified；
FCC certification	Passed, not certified
RoHS certification	Passed, not certified；
Other certifications	No;
