MT7621DAT AC Wireless Gateway Wired Enterprise Class Router

MT7621DAT AC Wireless Gateway Wired Enterprise Class Router

5-port Gigabit AC wireless gateway, wired enterprise-class router, wireless AP controller

Product Description:

    ZT-RG500 is a 5-port full Gigabit wired router, supports multiple WAN access methods, supports PPPOE dial-up, dynamic IP, static IP, and supports a variety of enterprise-level applications;

    ZT-RG500 has good signal, high transmission rate and stable performance. It is the best choice for families to realize high-speed wireless Internet access.

Product Features:

• Provide 1 10/100/1000M Ethernet (WAN) interface, which can be connected to XDSL modem/Cable modem/Ethernet/GPON/EPON/XPON;
• Provide 4 10/100/1000M Ethernet (LAN) interfaces for connection in the local area network;
• The networking mode supports static IP, dynamic IP, PPPOE dialing
• Built-in network address translation (NAT function, support virtual server, special application and DMZ host;
• Built-in DHCP server, and static address assignment can be performed at the same time;
• Support Universal Plug and Play (UPNP), and data that meets the UPNP standard can be passed smoothly;
• Built-in firewall function, supporting domain name filtering and MAC address filtering;
• Support QoS bandwidth control function, which can effectively allocate the download rate of the client;
• Support dynamic DNS function, which can provide domain name service for dynamic IP address;
• Built-in static routing function, can build special network topology according to needs;
• Supports access control based on MAC address, which can effectively control the access rights of intranet users;
• Full English configuration interface, equipped with a simple installation wizard (Wizard).
• Support computer and mobile phone settings, and self-adaptive design of WEB page on mobile terminal;

Model	ZT-RG500

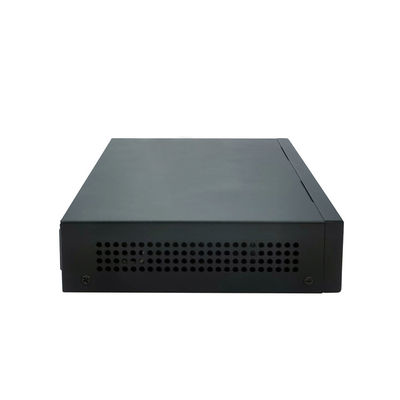

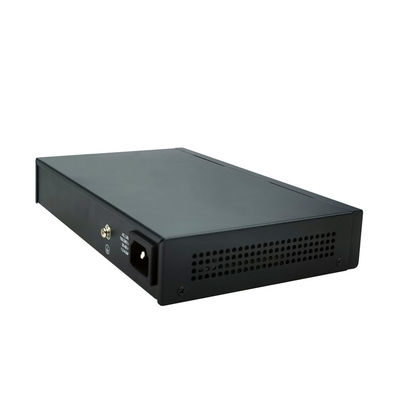

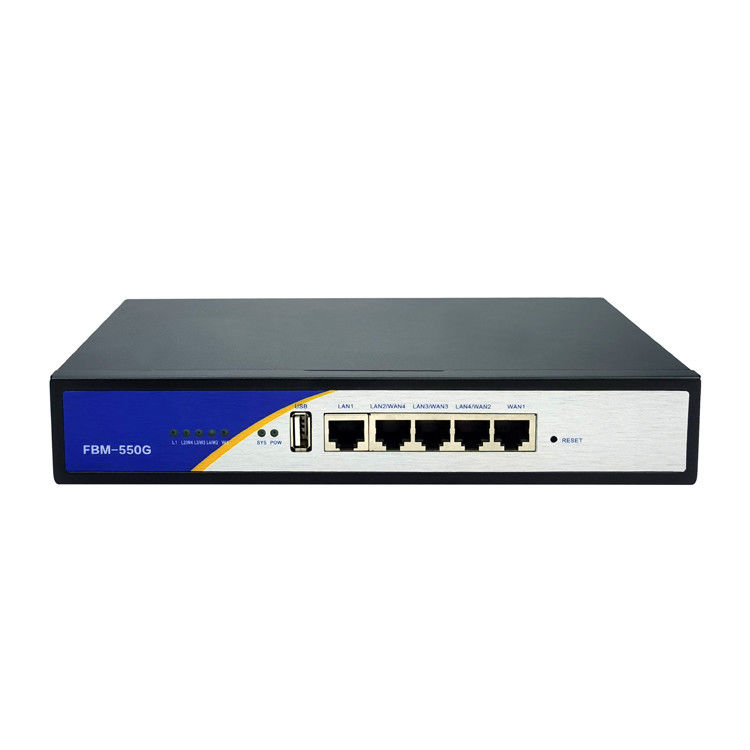

Appearance
Hardware specifications
Chipset	MT7621DAT
SPI Flash	16Mbyte
SDRam	128Mbyte
Ports	WAN: 1 x 10/100/1000 RJ45 Ports(Auto MDI/MDIX)
	LAN: 4 x 10/100/1000 RJ45 Ports(Auto MDI/MDIX)
	Reset: 1x RESET Key
	WPS: 1 x WPS Key
	USB:1 x USB2.0；
LED	Power,Internet,WAN,LAN1,LAN2,LAN3,LAN4
Colour	Black
Dimensions                (L x W x H)	150*220*20
Net weight	1.25kg
Gross weight	1.55kg
Electrical Specifications
Power input voltage	12V 1A
Maximum power consumption	＜12W
Power plug specifications	Choose according to the destination country
Business specifications
Networking method	PPPOE dial-up, static IP, dynamic IP
Operating mode	Router mode,
Port transmission rate	10/100/1000M
Network protocol:	IEEE 802.3, IEEE 802.3u
WEB language	Englsh
Environmental specifications
Working temperature	0℃～40℃
Working environment humidity	10%～90% RH Non-condensing
Storage temperature	-10℃～70℃
Storage environment humidity	5%～90% RH Non-condensing
Certified product
3C certification	Passed, not certified；
CE certification	Passed, not certified；
FCC certification	Passed, not certified
RoHS certification	Passed, not certified；
Other certifications	No;
